Need to see into tricky or hard to see places? Check out our full line to find the best borescope or inspection camera for you. The best borescopes, or inspection cameras, have become can’t live without a tool for inspectors, aviation professionals and plumbers. These essential tools allow you to see parts of an engine without having to take it apart or inside of pipes without having to dismantle or excavate.
The applications and purpose for a borescope camera provide the ability to carefully navigate into places you can’t easily fit your head are nearly limitless. In fact, that is one of our company slogans, “Anywhere you need to see but can’t fit your head.” Closely related in design and function to the medical endoscope, the borescopes and inspection systems we offer are not medical devices. We offer only industrial borescopes.
The borescope provides a small micro camera at the tip and relates that video signal to the color screen. There is no loss of video image quality with the probe length as the image is being sent digitally and not through fiber optics.
Today Remote Visual Inspection (RVI) is becoming more popular and necessary in various industries. But sometimes professionals, as well as beginners, are hesitant to use borescope cameras because they are not sure if they need any special training or skills to work with a borescope camera. However, most inspections (with the exception of aviation borescope camera inspections or those that require Confined Space Training or Lock-Out Tag-Out training) do not require any special knowledge or skills. Here are some care and precautions for your borescope camera usage:
Determine the required length and diameter of the insertion probe for your borescope camera. A point to make here is that you need not purchase the longest length borescope camera you can find. In many cases, a long borescope camera probe can be more work than necessary.
Many times, customers will choose a borescope that offers just a little bit more length and flexibility than what they assume they need in hopes that it can handle almost anything they will encounter. However, a word of caution in this area is the longer is not necessarily better. If you think that you will only require 2 meters of working length but then choose to purchase a borescope that offers double or triple that length, you may find that the extra probe length is more of a nuisance to deal with rather than assistance.

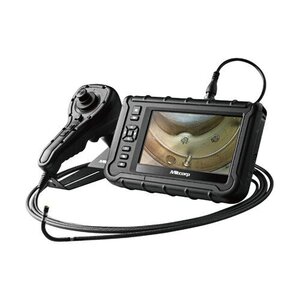

USA750J-4-1500 – Joystick Articulation – 3.9mm Videoscope – 1.5m Length
This advanced joystick articulating videoscope offers a 3.9mm probe with dual camera imaging. No more lost or cross threaded side view tips! Just push a button and switch to front or side view. HD image quality borescope with probe lengths available in 1.5- and 3.0-meter lengths. The large 5-inch touch screen is IP54 water and dust resistant. The rugged and durable borescope system is securely packaged in a custom designed heavy-duty case.
Designed for applications where high mobility is needed, the USA750 is lightweight, rugged, and provides high-resolution images and advanced imaging functions that allow workers to fulfill their tasks in even the most challenging environments.
The USA750’s software includes a file management system that allows you to sort photos and videos into session folders. You can write notes or annotations and add them to your images. A compare function enables you to compare the live view image to gallery images. You can also include logos and watermarks as well as session tags. These functions make keeping track of all your inspections easy and convenient.
Specs
Diameter: 3.9mm
Length: 1.5 meters (4.9ft)
Camera Tip Length: 21.6mm
Direction of View: Front View / 90° Side view
Illumination: Front / Side LEDs
Field of View (FOV): 120°
Depth of Field (DOF): 5mm ~ 100mm
Still Image Resolution(.jpg): 1600*1600
Video Resolution (.mov): 1600*1600
Articulation Angle: 360° Rotation / 120° Angle
Camera Housing Material: Stainless Steel
Probe Sheathing: Tungsten Braid

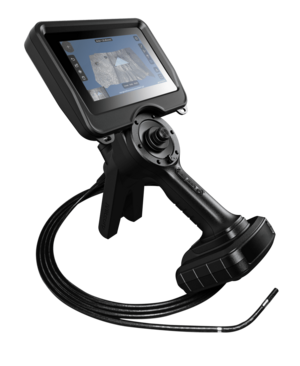

USA600HD-J-4 – Joystick – 4mm Videoscope – up to 2m Length
View and document clear and crisp inspection images with the HD image quality camera and built-in 5-inch color display.
The water-resistant camera probe is suitable for drains, pipes turbines, engines, weld inspections, wet and oil environments. High intensity adjustable LED brightness levels reduce glare on reflective surfaces while improving visibility inside hard to see areas.
This portable borescope solution meets the demands of industrial inspections across many disciplines including turbines borescope inspections, engine inspections and weld inspections.
Built in SD card allows you to save inspection images and videos for documentation records, diagnostics and distributing, making it ideal for aviation borescope inspections, aerospace quality inspections or other quality inspections.
Some would refer to this as a Cheap Borescope or Low Cost Borescope, but they would be referring to the price and not the features and image quality.
All borescope sales and service are performed from our US location. This borescope is the highly recommended cheap borescope among professionals.
Specs
Diameter: 3.9mm
Length: 1.5m or 2 meter
Direction of View: Front View
Illumination: Front
Articulation: Joystick
Field of View (FOV): 90°
Depth of Field (DOF): 10mm ~ 100mm
Still Image Resolution(.jpeg): 1920×1080
Video Resolution (.mp4): 1920×1080
Camera Housing Material: Stainless Steel
Probe Sheathing: Stainless Steel
Probe: IP 67 / Base Unit: IP54
WIFI: 802.11 b/g/n 2.4Ghz
Video Output: Micro HDMI
Storage: Micro SD up to 64GB
Display: 5″ Touchscreen (800×480)

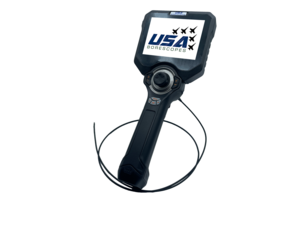

Joystick Articulation – 4mm Videoscope – 1.5m Length
USAVS J-4-1500 Slim 3.9mm diameter joystick controlled articulating videoscope with responsive cable guided controls. The precision-made bending section of the economy joystick allows for smooth and precision manipulation of the tip of the probe to obtain a full view of the borescope inspection area. The borescope probe is steel braided and flexible. Still photos and videos are captured with just the push of a button. The data is saved on a removable SD card which allows for easy storage and transfer of the borescope inspection data.
Specs
precision-made FOV 120°
DOV 10-80mm
Bending section length :50 mm (1.96 inch)
Distal tip length: 15mm (.59 inch)
Battery: Li-ion 3500mAH
AC Adapter Input: 110-240VAC
Insertion Probe: IP 67
Control Station; IP 52; 4.5”
Time Date Stamp
USB 2.0 port
Automatic white balance
7 Languages

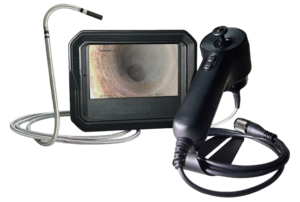

USA3000J-6 – Joystick Articulation – 6mm Dual View 3D Measuring Videoscope
Introducing our latest advancement in videoscope technology: the USA3000J 3D Videoscope! This innovative unit features a Dual View measuring camera head. It is currently available in 3 meters working length. The system delivers exceptionally crisp, high-resolution images and videos at an impressive 2560×1440 resolution!
Equipped with a 7-inch touchscreen monitor, users can easily add notes or text directly on the screen, view previously captured photos and videos, adjust settings, and create 3D models of surfaces for straightforward crack identification and measurement. The videoscope also offers smooth joystick control for enhanced usability.
At present, the diameter of the videoscope is 6mm, with an interchangeable 4mm diameter option coming soon!
Specs
Dual View 3D Measuring
Excellent Image Quality with Optimized Optic System & HD CMOS Sensor
High Resolution Picture/Video LCM Output System
Smooth Joystick Control and Lock System
Tungsten Tube
Temperature Warning
7″ HD Monitor
Rigid Sleeve
Available in 3m
HD Borescope
Interchangeable Probe Borescope
Supports 6mm probes (and soon 4mm)
Detachable Battery
Field of View (FOV): 95°
Depth of Field (DOF): 10mm~∞
USA2000J-4-1500DV – Joystick Articulation – 4mm Dual-View Videoscope – up to 3m Length
Without a doubt, video scopes are the go-to tool for ship and aircraft turbine engine maintenance technicians. Good picture quality and smooth articulation controls are especially helpful for combustion and exhaust blade system checks in finding defects. By doing this, check for faults without disassembling the engine or machinery.
With our HD dual view insertion probe, the USA2000J-4-1500DV videoscope offers all-new real-time sharpness, brightness, and manual exposure features. These assist consumers in obtaining the finest image quality in settings with strong contrast. One press on the 7″ touchscreen display allows you to switch between both cameras without needing to install a sideview tip. The new tungsten braid tubes increase the durability and allow it to withstand the toughest inspection applications.
Specs
7″ Touchscreen Color Monitor
3.9mm Diameter
1.5 meter tungsten working length
Dual View HD Camera Lens (Forward and 90° to the side)
Joystick Articulation
Picture/Video/Audio Recording
Adjustable LED Lighting
Freeze Function
Light Boost Function
Negative Function
WiFi Enabled
Text Function
Advanced File Management Function
Heavy Duty Rolling Case

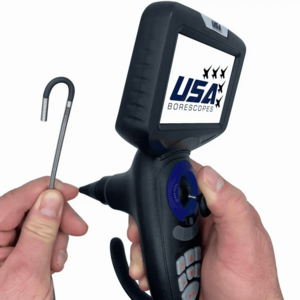

SRV-J-4-1500 – Joystick Articulation – 4mm Videoscope – up to 3m Length
This HD image quality borescope offers 360° all-way rotating articulation. The articulation allows you to maneuver or steer the tip of the probe. This is an essential feature for aviation borescope inspections while inspecting turbine blades. This is also a valuable option for other nondestructive test inspections as it allows you to view the full view of the inspection area without having to disassemble the finished product.
Industrial video endoscope, also known as borescope inspection camera, is a visual nondestructive testing equipment, which is used in a various industrial application, such as aircraft engine inspection and maintenance, engine inspections, facility maintenance, automobile engine inspection and maintenance, oil and natural gas pipeline inspection and maintenance, etc., to provide the image quality and beneficial inspection solution for nondestructive testing.
The foundation of our borescope is slim and maneuverable insertion tube. The outside construction of the insertion tube is braided with hardened stainless-steel metal, which is designed not only to protect the internal components of the borescope but also provide a rugged exterior for your daily borescope inspections. The external metal braid is for tensile resistance and provides resistance to oil and water resistance to IP67 waterproof.
Specs
Joystick Articulation
1.5m Length (Also available in 3m)
5″ HD Touch Screen
Photo / Video Recording via Micro SD Card (1280x720px)
Video out via HDMI output
Digital Zoom
Graffiti to mark objects
8 character text annotation
EV Adjustment
Operating Temperature: ~0C – 60C
Distal End: 10mm
Tungsten Braided Mesh
4mm diameter
1.5m Length (Also available in 3m)
